QTrbm (Resilient Base Mat)

QTrbm is designed to produce some of the thinnest sound rated systems in the industry.

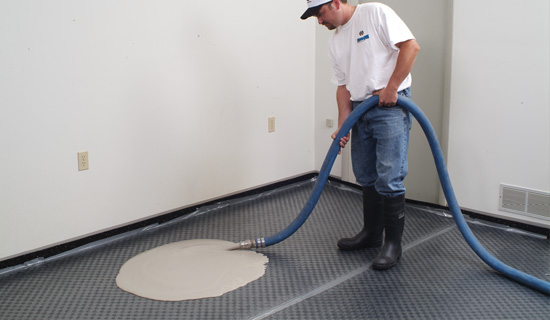

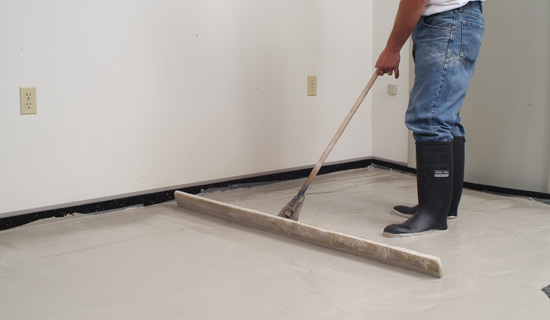

Composed of 92-percent recycled rubber, QTrbm is a dimpled mat designed for use under gypsum or full weight concrete. QTrbm is available in four standard thicknesses ranging from 6 millimeter (mm) to 25 mm. Thicknesses are available in 6-17 mm and come in 54- inch-wide rolls. The 25 mm thickness comes in 48-inch-wide rolls. Also available with a waterproof membrane, QTrbm is ideal for use under full weight surfaces, such as gypsum concrete, and features quick and easy dry-laid installation. Supported by more than 400 independent laboratory and field tests, QTrbm outperforms cork, felt, plastic, and roofing membranes while meeting all established indoor air quality standards to make it one of the most effective and sustainable products available.

Benefits

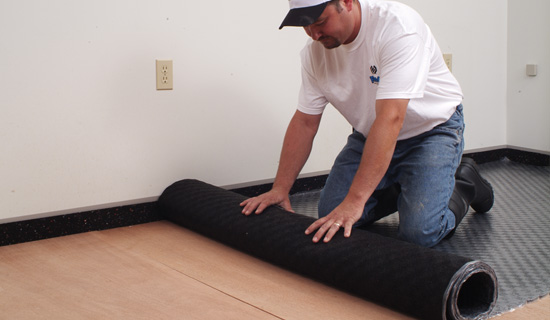

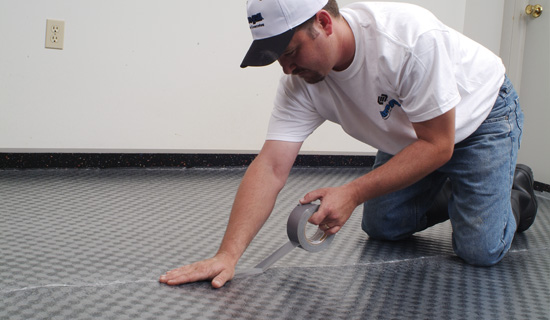

  • Easy installation – just roll out, tape, and go
  • Approved in more than 82 UL floor/ceiling assemblies and is system rated for commercial and residential use per ASTM C627
  • Minimum 1-inch pour meets sound rating criteria and is rated light commercial by the Tile Council of North America
  • Durable enough to withstand movement of heavy equipment on surface
  • Very low compression set versus entangled mesh mats
Product Thickness
QT 3006-3 6mm
QT 3010-5 10mm
QT 3017-8 17mm
QT 3025-7 25mm
